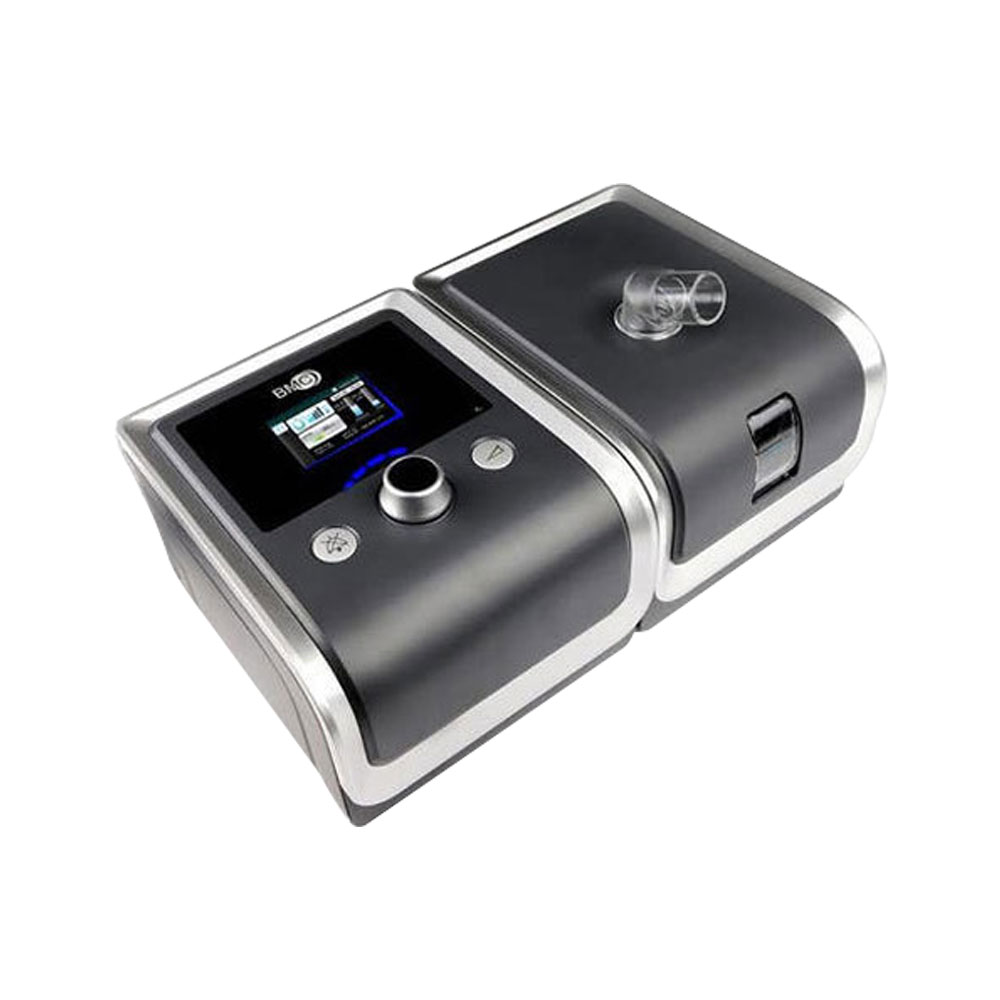

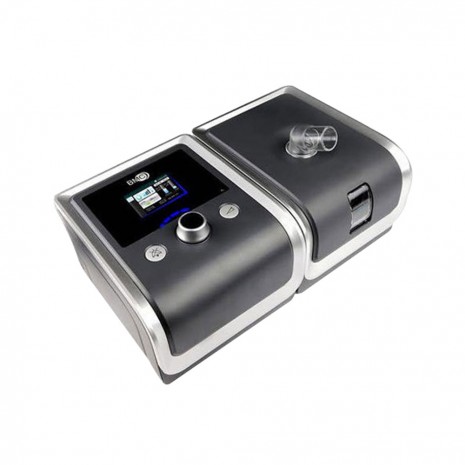

BMC RESmart GII Bipap Y-25T

Specifications

Device Size

Dimensions: 170 mm × 180 mm × 118 mm, or 290 mm × 180 mm × 134 mm (with the humidifier)

Weight: 1.5 kg, or 2.5 kg (with the humidifier)

Product Use, Transport and Storage

                   Operation                                                                Transport and Storage

Temperature: 5°C to 35°C (41˚F to 95˚F)                         -25°C to 70°C (-13˚F to 158˚F)

Humidity: 15% to 93% Non-condensing                            15% to 93% Non-condensing

Atmospheric Pressure: 760 to 1060 hPa                             760 to 1060 hPa

Mode of Operation

Continuous

Work Mode

CPAP, S, AutoS, AutoCPAP, S/T, T

SD Card

SD card can record patient data and fault information.

AC Power Consumption

100 – 240 V ～ 2 – 1 A, 50 / 60 Hz

Main Device offer to USB Communications Port

5 V 2.0 A

Main Device offer to Humidifier

24 V 1.5 A

Type of Protection against Electric Shock

Class II Equipment

Degree of Protection against Electric Shock

Type BF Applied Part

Degree of Protection against Ingress of Water

IP22

Pressure Range

IPAP : 4.0 ～ 25.0 hPa ; in 0.5 hPa increments.

EPAP: 4.0 ～ 25.0 hPa ; in 0.5 hPa increments.

CPAP mode: 4.0 ～ 20.0 hPa

Under single fault conditions, ≤ 30 hPa for CPAP mode, ≤ 40 hPa for the rest modes.

Pressure Display Accuracy

± (0.8 hPa＋4%)

Static Pressure Stability

± 0.5 hPa

Ramp

The ramp time ranges from 0 to 60 minutes.

Sound Pressure Level

< 30 dB, when the device is working at the pressure of 10 hPa.

Sound Power Level

< 38 dB, when the device is working at the pressure of 10 hPa.

Tube

Length: 6 ft. (1.83 m)

The Form and the Dimensions of the Patient Connection Port

The 22 mm conical air outlet complies with ISO 5356-1.
