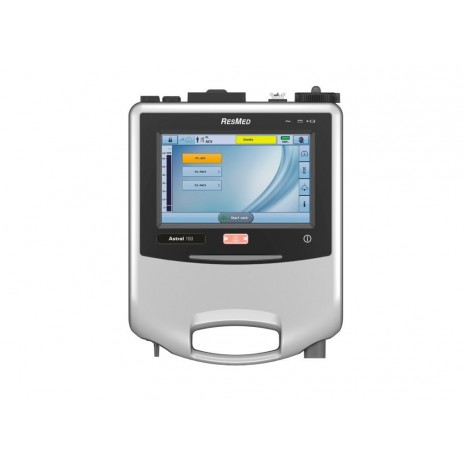

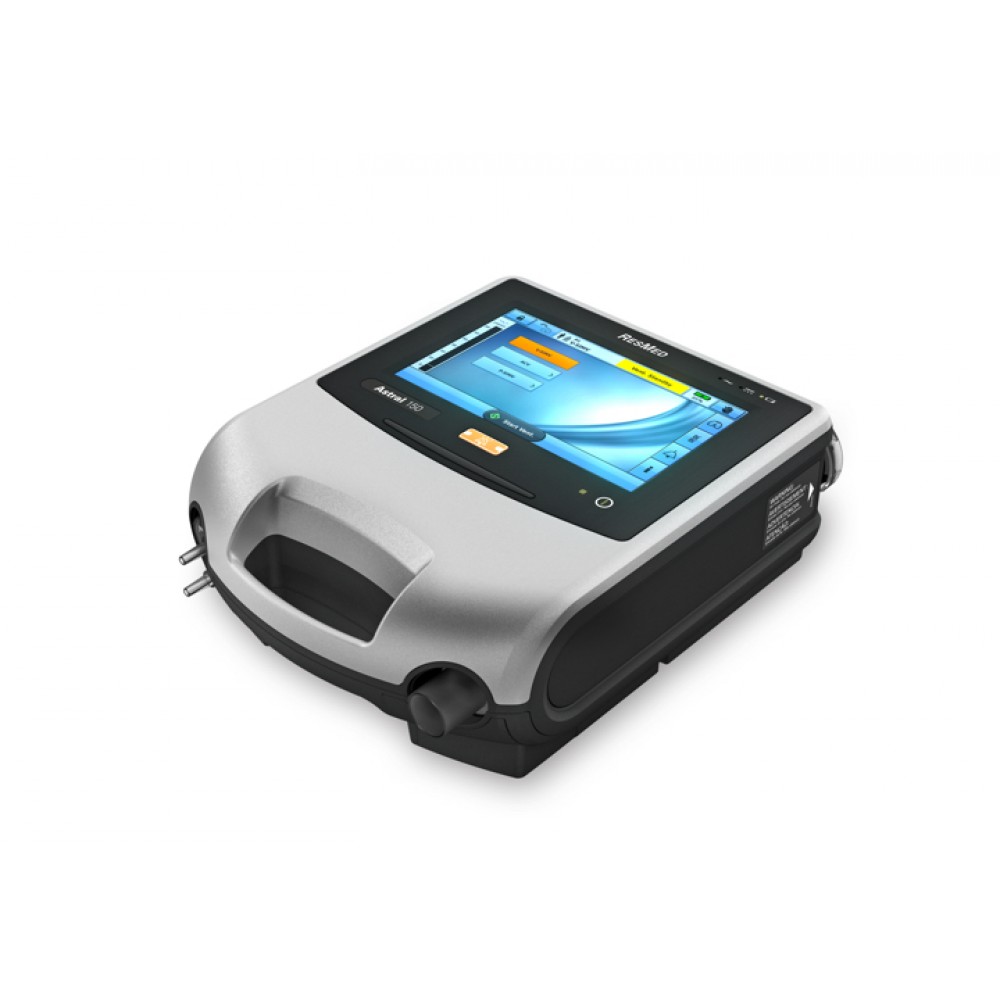

ResMed Astral 150 Ventilator

Astral 150

Indications for use

Life support for patients over 5 kg*

Circuit

Single circuit with leak

•

Single circuit with valve

•

Double circuit

•

Therapy

Valve circuit therapy:

CPAP, (A)CV, P(A)CV, P-SIMV, V-SIMV, PS

•

Leak circuit therapy:

CPAP, (S)T, P(A)C, iVAPS* with optional AE**, PS

•

Manual breath

•

Sigh breath (recruitment)

•

Apnea ventilation

Volume and pressure

Preset programs

4

Pressure range and settings

Delivered pressure (cm H2O)

2–50 (leak circuit)

0–50 (valve circuit

Delivered tidal volume (cm H2O)

Adult: 100 to 2500 mL

Pediatric: 50 to 300 mL

Respiratory rate

Adult: Off, 2 to 50 bpm

Pediatric: Off, 5 to 80 bpm

Data

SpO2 monitoring

Optional

FiO2 monitoring

Standard

On screen

30 days of summary data

Real-time pressure and flow (25 Hz)

ResScan™ (via download)

365 days of summary data

7 days of detailed data

AirView™ (RCM required)

365 days of summary data

7 days of detailed data

Alarms

A wide range of settable alarms are available,

including FiO2 and SpO2 when connected.

Dimensions

Weight

3.2 kg

Dimensions (L x W x H)

285 mm x 215 mm x 93 mm

Internal battery

Lithium-Ion battery,

14.4 V, 6.6 Ah, 95 Wh.

Up to 8 hours of backup power

Sound power level

43 ± 3 dBA***

Sound pressure level

35 ± 3 dBA***

IEC 60601-1 CLASSIFICATIONS:

Medical electrical equipment - general requirements

for basic safety and essential performance

Class II (double insulation) Type BF

Continuous operation

Suitable for use with oxygen
