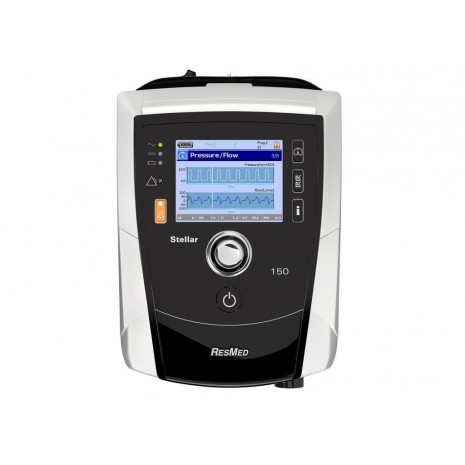

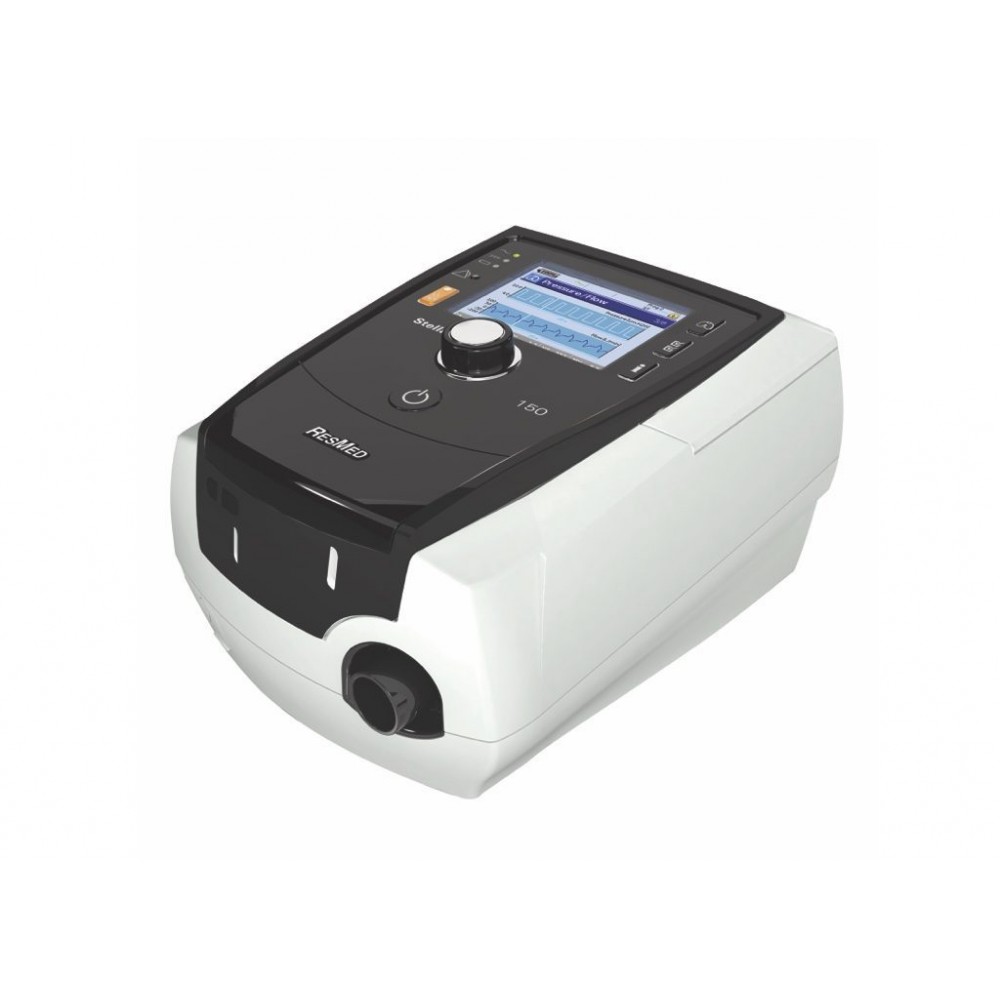

ResMed Stellar 150

Stellar 150 specifications

Modes

iVAPS (intelligent Volume-Assured Pressure Support) with AutoEPAP*

ST      (Spontaneous-Timed)

PAC    (Pressure Assisted Control)

CPAP  (Continuous Positive Airway Pressure)

S        (Spontaneous)

T        (Timed)

Pressure range

      IPAP : 2-40 cm H2O

        EPAP : 2-25 cm H2O

TiControl^TM

      Ti Max 0.3 – 4 sec

        Ti Min 0.1 – Ti Max

Respiratory Rate

      5-60 bpm

Rise Time

      Min, 150 – 900 msec (approx.)

Trigger and Cycle

      Five sensitivity settings

Adjustable alarms

      High Leak

        Low Minute Ventilation

        Low and High Pressure

      Low and High Respiratory Rate

        Apnoea

        Low and High FiO2

        Low SpO2

        Non – vented mask

Standard fixed alarms

      Circuit disconnected

        Over pressure

Blocked tube

Internal battery empty

Dimensions (L x W x H)

      230 x 170 x 120 mm

Weight

      2.1 kg.

Air filter

      Electrostatic fibre mesh

Air outlet

      22 mm taper, compatible with ISO5356 – 1:2004

Internal battery

      Lithium – ion, 2 hours at EPAP 5, IPAP 15, 20 bpm

Power Supply

      AC 100 – 240V 50 – 60Hz,

        2.2A AC 110V 400Hz,

        2.2A DC 24V/3A

IEC 60601 – 1 Classification

      Class II (double insulation) Type BF Continuous Operation

*iVAPS with AutoEPAP is only available on Stellar 150
