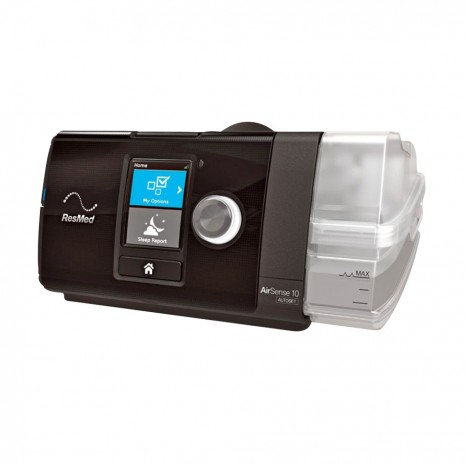

ResMed AirSense 10 AutoSet

Technical specifications

Operating pressure range

• 4–20 cm H2O

Dimensions (H x W x D)

• 4.57" x 10.04" x 5.91" (116 mm x 255 mm x 150 mm)

Weight (Device and water tub)

• 44 oz (1248 g)

90W power supply unit

• Input range: 100–240V, 50–60Hz
• Typical power consumption: 53W (57VA)
• Maximum power consumption: 104W (108VA)

Environmental conditions

• Operating temperature: +41°F to +95°F (+5°C to +35°C)
• Operating humidity: 10 to 95% relative humidity, non-condensing
• Operating altitude: Sea level to 8,500' (2,591 m); air pressure range 1013 hPa to 738 hPa
• Storage and transport temperature: -4°F to+140°F (-20°C to +60°C)

• Storage and transport humidity: 5 to 95% relative humidity, non-condensing

Supplemental oxygen

• Recommended maximum flow: 4 L/min

Standard air filter

• Polyester non-woven fiber

Tubing

• SlimLine: 6' (1.8 m) length, 0.6" (15 mm) inner diameter
• Standard: 6'6" (2 m) length, 0.75" (19 mm) inner diameter

Air outlet

• 22 mm air outlet complies with ISO 5356-1:2004

Electromagnetic compatibility (EMC)

• Complies with all applicable EMC requirements according to IEC 60601-1-2:2014 for residential, commercial and light industry environments

Aircraft use

• ResMed confirms that device meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 21, category M) for all phases of air travel

IEC 60601-1:2005+/A1:2012 classification

• Class II (double insulation), Type BF Ingress protection IP22
